ESD fabrics for cleanrooms
-
Select options
110gsm | 98% Polyester, 2% AS | Plain 1/1
(4 Certificates)
Workwear fabric
CleanStatic-110 is a lightweight antistatic fabric: 98% polyester woven with 2% Belltron conductive yarn, gridlocked into the surface of the fabric. The grid gives static charge a controlled path to earth, so it dissipates instead of releasing as a spark.[show_more more="Show more" less="Show less" color="#629e11" align="left" ] That matters wherever a discharge is expensive or dangerous: cleanroom and electronics-assembly garments, where a spark destroys components, and any workplace where charge build-up is a hazard. At 110gsm in a plain 1/1 weave this is the lightest fabric in the CleanStatic range, chosen where breathability and low weight outweigh abrasion resistance; CleanStatic-140 and CleanStatic-180 cover the heavier end. Tested to EN 1149-5 and EN 61340-5-1, with EN 1149-5 performance re-verified after 50 wash cycles at 40°C, and certified to OEKO-TEX Standard 100.[/show_more]
Key features: Antistatic, Oeko-Tex 100
Certifications: EN 1149-5, EN 61340-5-1, Oeko-Tex 100
CLEANSTATIC-110
Select options110gsm | 98% Polyester, 2% AS | Plain 1/1
(4 Certificates)
Workwear fabric
CleanStatic-110 is a lightweight antistatic fabric: 98% polyester woven with 2% Belltron conductive yarn, gridlocked into the surface of the fabric. The grid gives static charge a controlled path to earth, so it dissipates instead of releasing as a spark.[show_more more="Show more" less="Show less" color="#629e11" align="left" ] That matters wherever a discharge is expensive or dangerous: cleanroom and electronics-assembly garments, where a spark destroys components, and any workplace where charge build-up is a hazard. At 110gsm in a plain 1/1 weave this is the lightest fabric in the CleanStatic range, chosen where breathability and low weight outweigh abrasion resistance; CleanStatic-140 and CleanStatic-180 cover the heavier end. Tested to EN 1149-5 and EN 61340-5-1, with EN 1149-5 performance re-verified after 50 wash cycles at 40°C, and certified to OEKO-TEX Standard 100.[/show_more]
Key features: Antistatic, Oeko-Tex 100
Certifications: EN 1149-5, EN 61340-5-1, Oeko-Tex 100
-
Select options
140 gsm | 63% Polyester, 33% Cotton, 4% AS | Twill 2/1
(2 Certificates)
Workwear fabric

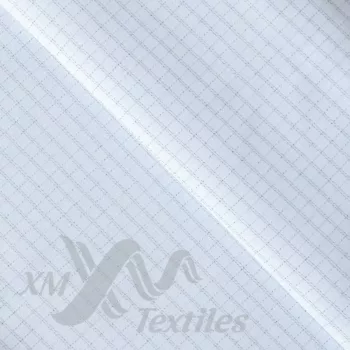

CleanStatic-140 carries the highest conductive-fibre share in the CleanStatic range: 4% Belltron yarn, gridlocked into the surface of a twill 2/1 weave. The grid gives static charge a controlled path to earth, reducing the risk of an incendiary discharge and of damage to sensitive electronics.[show_more more="Show more" less="Show less" color="#629e11" align="left" ] It is built for cleanroom and laboratory garments, and for light service wear where charge control matters more than abrasion resistance. Tested to EN 1149 and EN 61340-5-1, with performance verified after 5 wash cycles at 60°C to ISO 6330. For other weights in the same range see CleanStatic-110 at 110gsm and CleanStatic-180 at 180gsm.[/show_more]
Key features: Antistatic
Certifications: EN 1149, EN 61340-5-1, Oeko-tex 100
CLEANSTATIC-140
Select options140 gsm | 63% Polyester, 33% Cotton, 4% AS | Twill 2/1
(2 Certificates)
Workwear fabric
CleanStatic-140 carries the highest conductive-fibre share in the CleanStatic range: 4% Belltron yarn, gridlocked into the surface of a twill 2/1 weave. The grid gives static charge a controlled path to earth, reducing the risk of an incendiary discharge and of damage to sensitive electronics.[show_more more="Show more" less="Show less" color="#629e11" align="left" ] It is built for cleanroom and laboratory garments, and for light service wear where charge control matters more than abrasion resistance. Tested to EN 1149 and EN 61340-5-1, with performance verified after 5 wash cycles at 60°C to ISO 6330. For other weights in the same range see CleanStatic-110 at 110gsm and CleanStatic-180 at 180gsm.[/show_more]
Key features: Antistatic
Certifications: EN 1149, EN 61340-5-1, Oeko-tex 100
-
Select options
180 gsm | 65% Polyester, 33% Cotton, 2% AS | Twill 2/1
(3 Certificates)
Workwear fabric

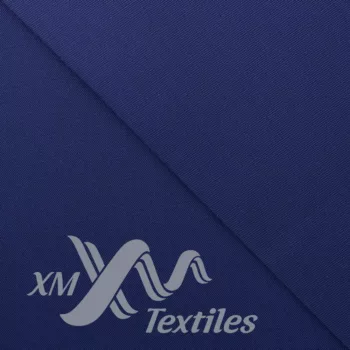

CleanStatic-180 is the everyday mid-weight of the CleanStatic range: 2% Belltron conductive yarn gridlocked into the surface of a twill 2/1 weave. The grid gives static charge a controlled path to earth, reducing the risk of an incendiary discharge and of damage to sensitive electronics.[show_more more="Show more" less="Show less" color="#629e11" align="left" ] It is the workhorse for paint shops, assembly lines and electronics benches, and carries the widest colour choice in the range — six stock shades including the recently added Navy 440 and Grey 901. Certified to EN 1149-5 and EN 61340-5-1, and to OEKO-TEX Standard 100. Lighter options in the same range: CleanStatic-110 at 110gsm and CleanStatic-140 at 140gsm.[/show_more]
Key features: Antistatic, Oeko-Tex 100
Certifications: EN 1149-5, EN 61340-5-1, Oeko-tex 100
CLEANSTATIC-180
Select options180 gsm | 65% Polyester, 33% Cotton, 2% AS | Twill 2/1
(3 Certificates)
Workwear fabric
CleanStatic-180 is the everyday mid-weight of the CleanStatic range: 2% Belltron conductive yarn gridlocked into the surface of a twill 2/1 weave. The grid gives static charge a controlled path to earth, reducing the risk of an incendiary discharge and of damage to sensitive electronics.[show_more more="Show more" less="Show less" color="#629e11" align="left" ] It is the workhorse for paint shops, assembly lines and electronics benches, and carries the widest colour choice in the range — six stock shades including the recently added Navy 440 and Grey 901. Certified to EN 1149-5 and EN 61340-5-1, and to OEKO-TEX Standard 100. Lighter options in the same range: CleanStatic-110 at 110gsm and CleanStatic-140 at 140gsm.[/show_more]
Key features: Antistatic, Oeko-Tex 100
Certifications: EN 1149-5, EN 61340-5-1, Oeko-tex 100
-
New
Select options
245gsm | 64% Polyester, 34% Cotton, 2% AS| Twill 3/1
(4 Certificates)
Workwear fabric
Egeria-245 – specialized antistatic fabric designed for professional protective clothing. Ideal for ESD garments in electronics manufacturing, assembly operations, and cleanroom environments where static control is critical.[show_more more="Show more" less="Show less" color="#629e11;" align=”left” ]Also used in fuel handling operations, high-visibility workwear, and other applications requiring static dissipation properties.
Available in a wide range of colors, including fluorescent yellow for enhanced visibility applications. The fabric combines high strength and exceptional durability with a soft weave that ensures excellent wearing comfort during extended use.
Antistatic performance is achieved through specialized conductive fibers integrated into the fabric structure at 5mm intervals, providing consistent static dissipation. Advanced manufacturing processes ensure superior colour fastness and dimensional stability even after repeated washing at 60˚C. All protective properties are verified and maintained after 25 and 50 wash cycles. The fabric provides reliable static control for environments where electrostatic discharge poses risks to sensitive electronic components or where static accumulation must be prevented..[/show_more]Key features: Antistatic
Certifications: Oeko-tex, EN 13688, EN 1149-5, EN 61340-5-1, EN 20471
EGERIA-245
Select options245gsm | 64% Polyester, 34% Cotton, 2% AS| Twill 3/1
(4 Certificates)
Workwear fabric
Egeria-245 – specialized antistatic fabric designed for professional protective clothing. Ideal for ESD garments in electronics manufacturing, assembly operations, and cleanroom environments where static control is critical.[show_more more="Show more" less="Show less" color="#629e11;" align=”left” ]Also used in fuel handling operations, high-visibility workwear, and other applications requiring static dissipation properties.
Available in a wide range of colors, including fluorescent yellow for enhanced visibility applications. The fabric combines high strength and exceptional durability with a soft weave that ensures excellent wearing comfort during extended use.
Antistatic performance is achieved through specialized conductive fibers integrated into the fabric structure at 5mm intervals, providing consistent static dissipation. Advanced manufacturing processes ensure superior colour fastness and dimensional stability even after repeated washing at 60˚C. All protective properties are verified and maintained after 25 and 50 wash cycles. The fabric provides reliable static control for environments where electrostatic discharge poses risks to sensitive electronic components or where static accumulation must be prevented..[/show_more]Key features: Antistatic
Certifications: Oeko-tex, EN 13688, EN 1149-5, EN 61340-5-1, EN 20471
-
New
Select options
245gsm | 63% Polyester, 32% Cotton, 3% Spandex, 2% AS| Twill 3/1
(3 Certificates)
Workwear fabric
Specialized stretch fabric is engineered for protective under layers that demand greater freedom of movement, offering exceptional comfort. It is utilized in the energy, fuel, and electronics sectors for clothing that requires high visibility and protection against accidental electric discharge.[show_more more="Show more" less="Show less" color="#629e11;" align=”left” ]Uniforms crafted from this material boast exceptional strength and durability for long-term use. The material’s soft weave contributes to the comfort of the wearer. Its antistatic properties are achieved through a specialized construction that incorporates antistatic fibers spaced at 5mm intervals. The inclusion of elastic fibers ensures that even closely fitted garments allow for unrestricted movement. A meticulous production process guarantees the color fastness and dimensional stability of the fabric, even after washing at 60˚C, with protective properties maintained after 25 and 50 wash cycles. This fabric is certified in accordance with the European standard for workwear, EN 13688, which outlines general requirements for protective work clothing, including fit, design, material, marking, and sizing. It also meets the standards for protective clothing with electrostatic properties, EN 1149, specifying performance requirements and testing methods for materials used in protective clothing to prevent incendiary discharge. Additionally, it complies with EN 20471, the standard for clothing with increased visibility, ensuring the wearer’s presence is visually signaled.[/show_more]
Key features: Antistatic
Certifications: EN 1149-3, EN 61340-5-1, Oeko-tex 100
EGERIA ACTIVE-245
Select options245gsm | 63% Polyester, 32% Cotton, 3% Spandex, 2% AS| Twill 3/1
(3 Certificates)
Workwear fabric
Specialized stretch fabric is engineered for protective under layers that demand greater freedom of movement, offering exceptional comfort. It is utilized in the energy, fuel, and electronics sectors for clothing that requires high visibility and protection against accidental electric discharge.[show_more more="Show more" less="Show less" color="#629e11;" align=”left” ]Uniforms crafted from this material boast exceptional strength and durability for long-term use. The material’s soft weave contributes to the comfort of the wearer. Its antistatic properties are achieved through a specialized construction that incorporates antistatic fibers spaced at 5mm intervals. The inclusion of elastic fibers ensures that even closely fitted garments allow for unrestricted movement. A meticulous production process guarantees the color fastness and dimensional stability of the fabric, even after washing at 60˚C, with protective properties maintained after 25 and 50 wash cycles. This fabric is certified in accordance with the European standard for workwear, EN 13688, which outlines general requirements for protective work clothing, including fit, design, material, marking, and sizing. It also meets the standards for protective clothing with electrostatic properties, EN 1149, specifying performance requirements and testing methods for materials used in protective clothing to prevent incendiary discharge. Additionally, it complies with EN 20471, the standard for clothing with increased visibility, ensuring the wearer’s presence is visually signaled.[/show_more]
Key features: Antistatic
Certifications: EN 1149-3, EN 61340-5-1, Oeko-tex 100
-
New
Select options
245gsm | 64% Polyester, 34% Cotton, 2% AS| Twill 3/1
(4 Certificates)
Workwear fabric
The fabric is designed for multipurpose protective clothing suitable for workers in the gas, energy, fuel, and electronics sectors, among others, where there is a risk of electrical discharge and chemical splashes.[show_more more="Show more" less="Show less" color="#629e11;" align=”left” ] The fabric has been certified according to EN 13034 type 6 – Protective clothing against liquid chemicals.[/show_more]
Key features: Antistatic
Certifications: Oeko-tex, EN 13688, EN 1149-5, EN 61340-5-1, EN 20471
EGERIA AP-245
Select options245gsm | 64% Polyester, 34% Cotton, 2% AS| Twill 3/1
(4 Certificates)
Workwear fabric
The fabric is designed for multipurpose protective clothing suitable for workers in the gas, energy, fuel, and electronics sectors, among others, where there is a risk of electrical discharge and chemical splashes.[show_more more="Show more" less="Show less" color="#629e11;" align=”left” ] The fabric has been certified according to EN 13034 type 6 – Protective clothing against liquid chemicals.[/show_more]
Key features: Antistatic
Certifications: Oeko-tex, EN 13688, EN 1149-5, EN 61340-5-1, EN 20471
ESD fabrics (electrostatic discharge fabrics) are antistatic textiles with conductive fibres, usually a carbon grid, used for cleanroom garments and ESD-safe clothing in electronics and pharmaceutical production. XM Textiles CleanStatic fabrics are certified to EN 1149-3/5 and IEC 61340-5-1 and are low-linting, which makes them suitable for cleanrooms.
ESD clothing made with XM Textiles fabrics is the best solution for protecting electronic components against ESD.
Our CleanStatic fabrics are certified to European Standards EN 1149-3/5 and IEC 61340-5-1. These antistatic fabrics are specifically designed to prevent the ESD effect when working with electronics, high-explosive vapors, or in super-clean lab environments.
ESD occurs when two materials come into contact and then separate, resulting in a spark discharge when a metallic (conductive) object is touched. This discharge can potentially damage electronic circuits, precision machinery, and even cause gas explosions.
To prevent ESD and discharge static electricity in the air, antistatic fibers are woven into the fabric.
